Oblique drawing is the crudest '3D' drawing method but the easiest to master. Oblique is not really a '3D' system but a 2 dimensional view of an object with 'forced depth'.

When using oblique the side of the object you are looking at is drawn in two dimensions, i.e. flat. The other sides are drawn in at 45 degrees but instead of drawing the sides full size they are only drawn with half the depth creating 'forced depth' adding an element of realism to the object.Even with this 'forced depth', oblique drawings look very unconvincing to the eye. For this reason oblique is rarely used by professional designer and engineers.

A Simple Guide to Dimensions

With the left side of the block composed solely of "radiuses" (radii) - as shown here, we break our rule that we should not duplicate dimensions. The total length is known because the radius of the curve on the left side is given. Then, for clarity, we add the overall length of 60 and we note that it is a reference (REF) dimension.
This means that it is not really required.

Somewhere on the paper, usually the bottom, there should be placed information on what measuring system is being used (e.g. inches and millimetres) and also the scale of the drawing.

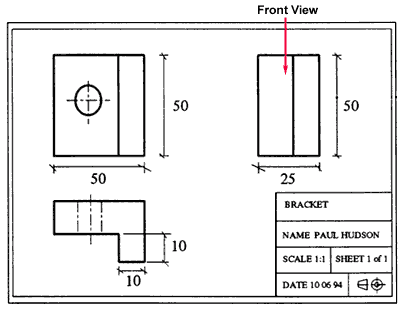

This drawing (shown to the left) is symmetric about the horizontal centre-line. Centre-lines are chain-dotted and are used for symmetric objects, and also for showing the centre of circles and holes.
Drawing dimensions should generally be done directly to the centre-line, as shown on the left. In many cases this method
can be clearer than just dimensioning
between surfaces.Note again that the measurements show only numbers. The statement at the bottom of the drawing identifies that these numbers are the dimensions in Millimetres.
